Rock Slope Stabilisation and Rockfall Protection
Rock cuts for roads, platforms and excavations can contain loose blocks and wedges defined by joints in the rock. Rock slope stabilisation holds the face in place with scaling, rock bolts, dowels and anchors, drainage and shotcrete where needed. Rockfall protection controls what still falls, with drapery mesh that guides blocks to the toe and catch fences, ditches or barriers that stop them. The measures are selected from a geological mapping of the slope and an assessment of the rockfall hazard.
Suitable ground conditions and applications
Can be considered where…
- Road and rail cuttings and highway slopes in rock.
- Platforms and excavations cut into rock in mountainous terrain.
- Faces with loose blocks, wedges or weathered zones.
- Protection of roads, structures and people below steep slopes.
Limitations
- Stability depends on the joint pattern, which varies along the slope and must be mapped.
- Access on steep faces needs rope access or specialist plant.
- Mesh and fences are designed for a block size and energy; larger events need other measures.
- Drainage and maintenance are needed for long-term performance.
Suitability is confirmed from the site investigation and the performance requirement.
How it works
The slope is mapped to identify joints, wedges and loose blocks. Loose material is scaled off by hand or machine. Unstable blocks are pinned with rock bolts or dowels drilled through them into sound rock and grouted; larger wedges may need tensioned anchors.

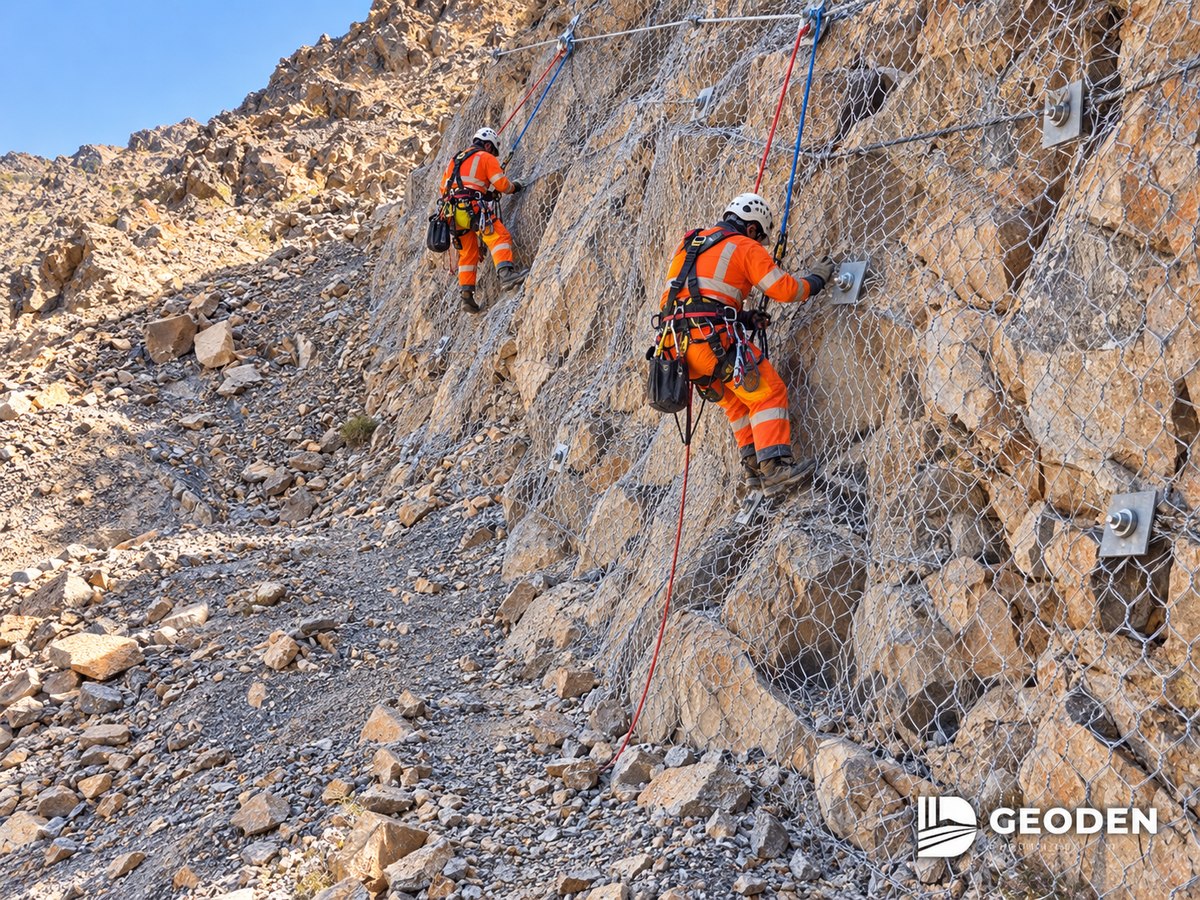

Drainage holes relieve water pressure behind the face. Weak or weathered zones may be covered with mesh and shotcrete. Drapery mesh hung over the face guides falling blocks to a catchment at the toe, and catch fences or ditches stop blocks that would otherwise reach the road or site.
Design inputs
- Geological and discontinuity mapping of the slope.
- Rockfall hazard assessment: block sizes, trajectories and energies.
- Slope geometry, access and the assets to be protected.
- Groundwater conditions.
- Design life and maintenance access.
Trial and calibration
- Pull-out tests on trial bolts to confirm bond capacity.
- Trial scaling and mapping of a representative section.
- Acceptance of the mesh and fence system to the design energy.
Execution controls
- Bolt position, length, inclination and grouting recorded for each bolt.
- Proof testing of a proportion of bolts and anchors.
- Mesh overlaps, fixing and anchorage inspected.
- Drain holes installed and flowing.
- Exclusion zones maintained below the work at all times.
Verification and acceptance
Design intent, production control and acceptance verification are kept separate, so it is always clear what was required, what was done and what was proven.
What is required
Stability and rockfall protection criteria agreed with the consultant.
What was done
As-built records of scaling, bolts, mesh, drains and fences.
What was proven
Bolt and anchor test results and final inspection of the slope.
Deliverables
- Method statement and risk assessment
- Slope mapping and hazard assessment
- Bolt and anchor records
- Test results
- As-built drawings
- Inspection and maintenance plan
